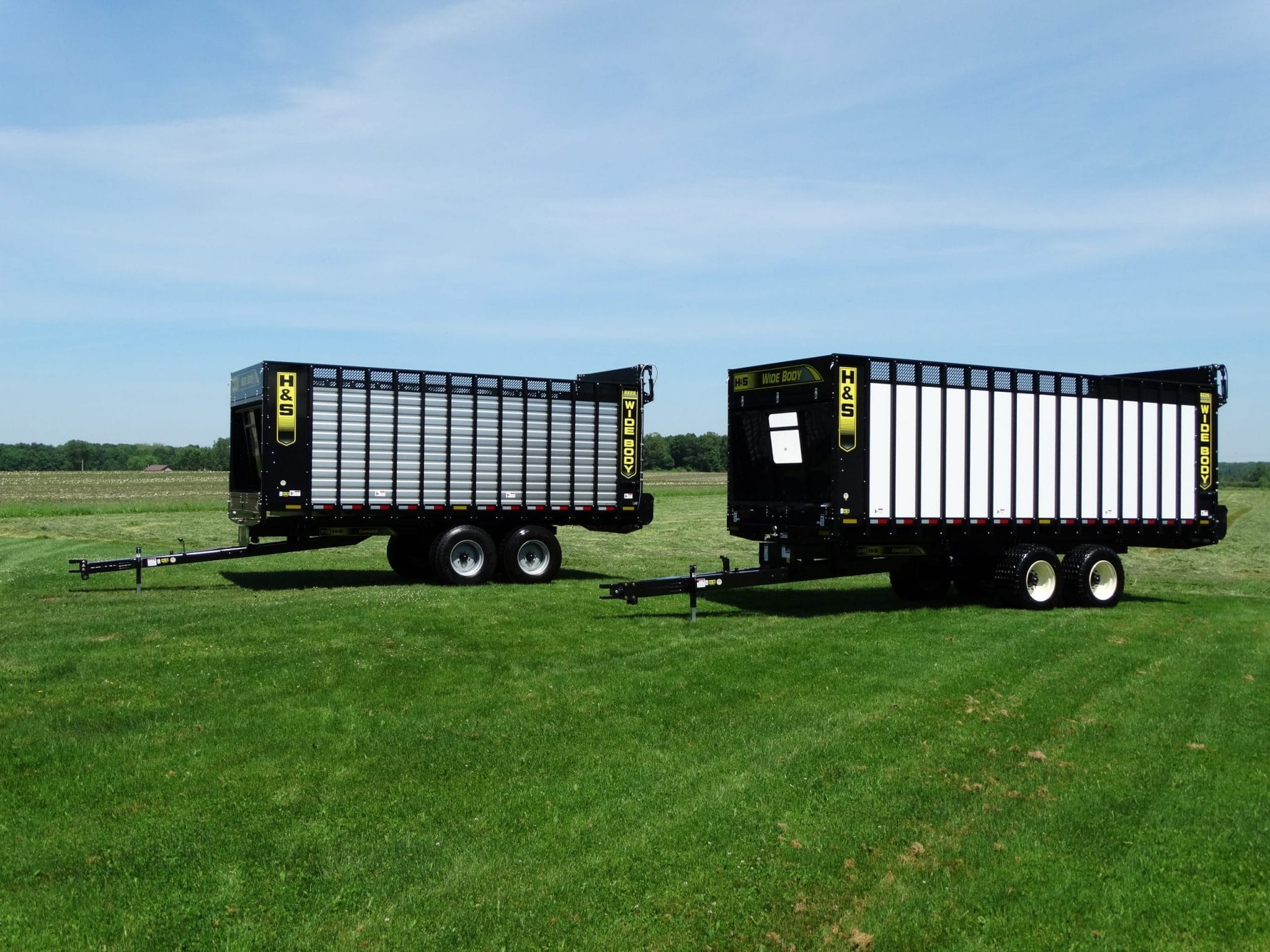

WB8230 – 30′

8200 SERIES WIDE BODY FORAGE BOX FEATURES:

Available in Truck, Chassis, or Running Gear Mount.
8′ inside width.
Painted steel front panel & rear door.
Aluminized Side Forage Boxes Models are available in 18′, 20′, and 22′ lengths.
Fiberglass Reinforced Plywood Sided Forage Box Models (FRP) are available in 22′, 24′, 26′ & 30′ lengths.
Mesh screen top sides.
Bolted Front Flip Down Panel – (Electric Actuator Control is optional)
Side stakes are 2½″ x 2½″ 10 gauge tubular steel with a 15½” spacing between them.
The patented hydraulic center mount drive system provides smooth trouble-free operation.
Spring-loaded tighteners on the main apron drive.
Cross Z-iron is welded to the side channels in-line with the stakes for added strength.
The poly floor features four formed steel channel supports that run lengthwise under the floor for added strength.
5″ Side Channels are welded to the stake pockets for added strength and are also used as a chain return slide.
Choice of double barn doors with air closure, or a top hinged door with a hydraulic delay system.
LED Highway Lighting
An optional front-to-rear electric roll tarp is a nice feature to keep that valuable forage from blowing out during transport.
An optional gravity unload grain hopper for grain is available for 8200 Series Forage Boxes with a top hinged door.

OPTIONS:

The H&S 8200 Series Wide Body Boxes offer a choice of double barn doors with air closure, or a top hinged door with hydraulic gate delay system.
An optional forage hood is also available.
An optional gravity unload grain hopper for grain is available for wide body boxes with a top hinged gate.
