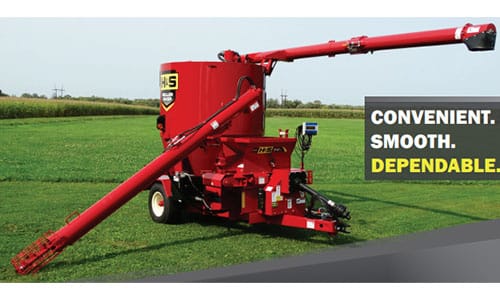

RM7117 ROLLER MIXER

The H&S RM7117 offers the convenience, dependability and smoothness of hydraulically operated feed making on your farm.

Features of the RM7117 include:

The self-contained hydraulic system includes a pulley-driven pump and a 15 gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.

Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.

The 240 degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.

A 14″ mixing auger with a 30″ base provides superior mixing uniformity.

An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.

Mixer drive systems are shear bolt protected

A large discharge door provides high-capacity unloading.

Mixer feeding attachments and unloading mechanisms are all driven hydraulically.

5-porthole windows allow the operator to see feed levels.

A 14″ mixing auger with a 30″ base provides superior mixing uniformity.

Mixers feature a side mounted supplement hopper.

Transport lights are standard equipment.

OPTIONS

Hydraulic Drive Corn Cob-Style Variable Speed Swinging Intake Auger w/Fold-In Flair

Hydraulic Drive Conventional Variable Speed Swinging Intake Auger w/Fold-In Flair

Rear Supplement Hopper

Digi – Star EZ 2500 Electronic Scale

Digi – Star EZ 3410 Electronic Scale W/External Horn

3′ and 6′ Discharge Auger Extensions

9117  –  1000 RPM PTO In Lieu Of Standard 540 RPM PTO

Mill Screens
