HQ CAB

The Versatile four-wheel drives offer the largest cab in the industry, it has 85.9 sq. ft. (7.98 sq. m) of window glass. Additional standard cab features include a front and rear intermittent wiper/washer system, front and rear sun visors, four 12-volt outlets, four cup holders, and multi-directional vents.

Deluxe Cab

The Deluxe Cab is a high-end full-featured cab that provides the operator with every imaginable comfort for long working days. A semi-active air-ride suspension seat and the training seat are both standard in this configuration. In addition to the connectivity options available in the standard cab, the Deluxe Cab has an 110v AC power outlet and a 5-volt integrated USB port. A subwoofer is also standard to improve sound quality in the cab.

CAT® TRANSMISSION

The entire line of Versatile four-wheel drive tractors now feature 16 x 4 CAT® powershift transmissions. The narrow frame models use the TA19. The Versatile large frame models feature the TA22.

The smooth shifting dependable CAT® transmissions offer 25 mph (40 km/hr) road speeds and a large selection of working range gears for every application. Both transmissions are programmable for auto-shifting and speed matching.

AXLES / DRAWBAR

All models feature a large, reliable heavy-duty planetary final drive to provide long service with heavily ballasted tractors and big implements. Large bearings support the planetary hubs on the axle housings. They are built with large axle tubes and planetaries capable of standing up to heavy weights and capable of handling loads associated with wide dual or triple wheel options.

Outboard Planetary Axles

In the 1970’s, Versatile engineers developed the outboard single reduction planetary axle, known in the industry for its strength, simplicity, ease of service and wheel mounting. The tradition of building the most reliable planetary combination in the industry starts with placing the planetary and sun gears towards the outside of the axle. Outboard planetary axles deliver all available horsepower through a large, precision machined floating sun gear. The planetary hubs are suspended on large diameter bearings mounted directly to the axle tubes. The load is supported by the axle housing assembly and not by the drive train components. All Versatile 4WD tractors feature reliable final drives that deliver horsepower where it counts: at the drawbar.

The planetary axles remain on the tractor during routine maintenance, limiting downtime. Daily inspections are easy with a quick visual check of the axle oil level indicators. The gears can also be reversed to double the wear life.

HYDRAULICS

The closed center load sensing hydraulic system provides ample capacity for implements that demand high hydraulic flow by providing pressure and flow on demand. When no hydraulic power is required, the system goes into low-pressure standby to conserve energy, providing more power at the drawbar.

Electro-Hydraulics – Optional electro-hydraulics, available on all models, are ergonomically designed for both comfort and convenience. Finger-tip controls manage the hydraulic functions and hydraulic flow is increased and decreased using the EHR monitor.
Hydraulic Flow – A total hydraulic flow of 53 GPM (201 L/min) is standard, or 106 GPM (401 L/min) with the optional high flow hydraulic system. Four remote valves are standard, six optional.

CONTROLS

Versatile tractors are designed to maintain a comfortable working environment for extended periods of time. By creating an integrated right hand control console with the powershift transmission, Versatile puts command of the tractor at your fingertips.

The console moves with the seat so you always have control of your equipment. The arm rest and molded hand rest provide an ergonomic solution with operating the tractor. Additional storage space is available under the arm rest.

Monitor

A 10″ (254 mm) high-resolution monitor is standard. The monitor can be programmed to display your hydraulic settings for quick reference. The monitor can also support up to two external cameras.

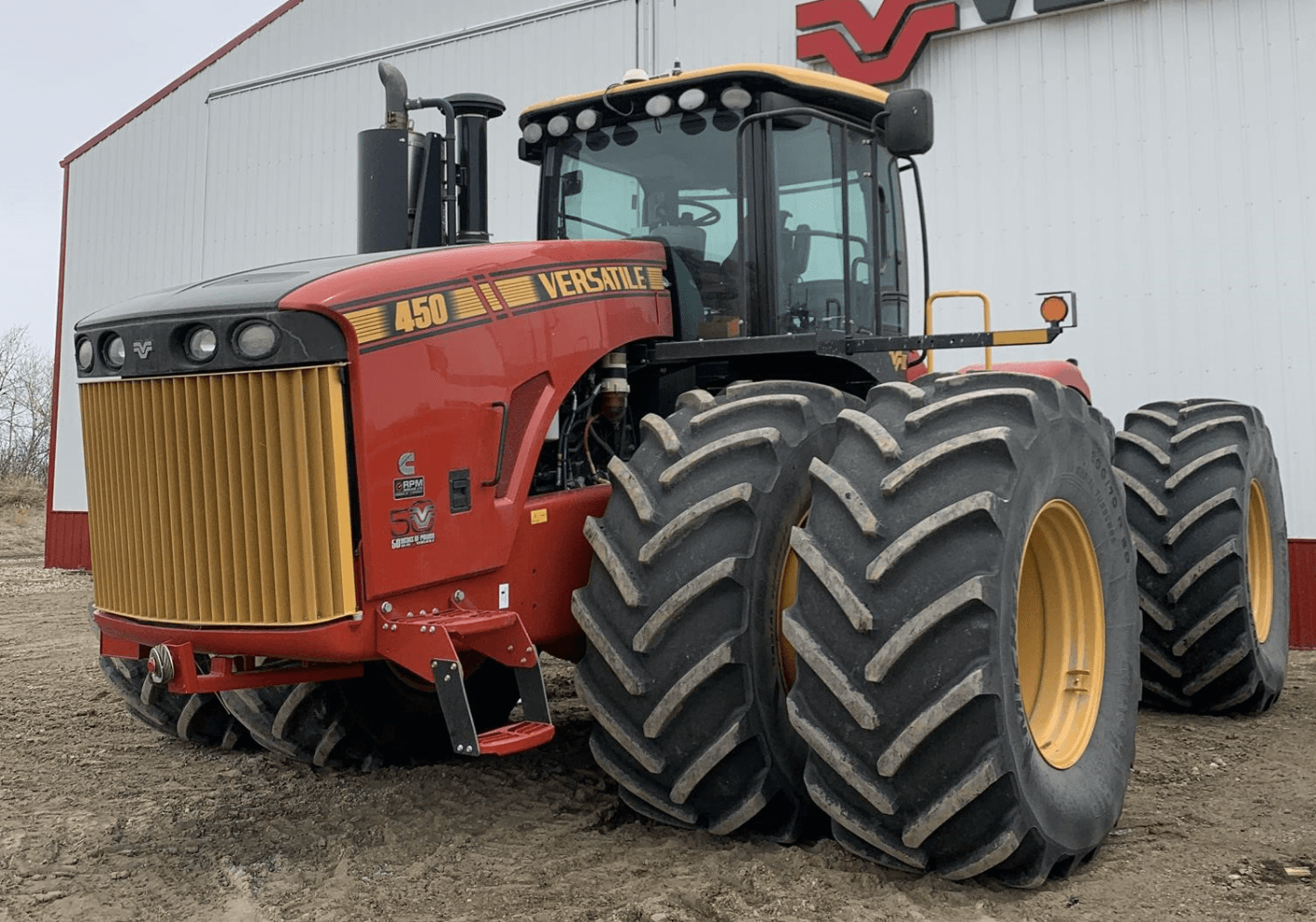

450

Call for Pricing
