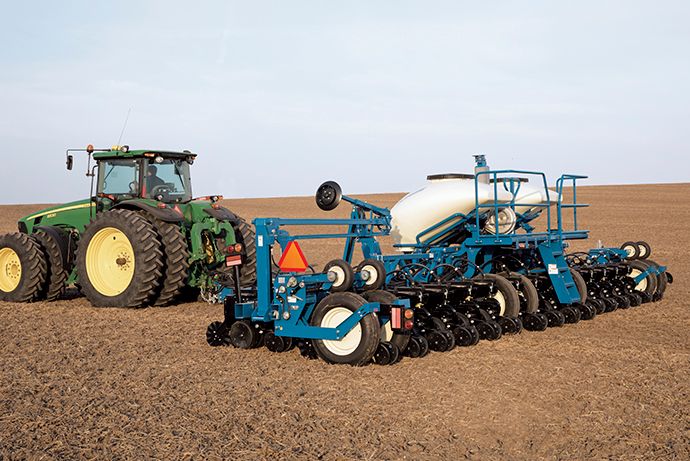

3605 Planter

The proven design of the Kinze 3605 pivot fold planter has planted countless acres around the world, and dependably and efficiently plants year after year for a great return on investment. With 80 bushels of bulk fill seed capacity, up to 600 gallons of liquid fertilizer, and True Rate vacuum meters, it quickly plants wide or narrow-row crops. Optional split rows, pneumatic down pressure, 4,400 lbs. dry fertilizer capacity, and bulk fill or row unit hoppers provide you the versatility you need on your farm. Also available with variable hydraulic or ground contact drive, finger pick-up meters, and brush meters 2.0.

KEY BENEFITS

• Improved durability, longer wear life, and lower cost of ownership from 05 Series row unit upgrades
• Exceptional seed handling capabilities with upgraded bulk fill entrainer — up to 11 different crops
• 99% accuracy at speeds up to 8 mph as field conditions allow, with the True Rate vacuum meter
• Consistent seed depth control with the durable True Depth hydraulic down force system
• Reduced pinch row compaction with 80 bushel bulk fill seed capacity featuring a hydraulic weight transfer system
• Narrow transport and easy serviceability achieved with double frame, lift and pivot folding frame design
• Efficient fertilizer application with up to 600 gallons of liquid or 4,400 lbs. of dry fertilizer capacity
• Follow rolling terrain with a 3-section pivot fold frame with 14 degrees of wing flex
• Plant both wide and narrow row width crops with split row option
